Kamet specializes in custom made steel profiles and shapes to meet all of our client's requirements.
We offer a wide range of standard profiles in a variety of materials. Our standard shapes include tees, channels, beams, angles and many other profiles. Much of our inventory is ready in stock, while grades different than the ones listed below are made available on request.
GRADES
W.Nr.1.4301/1.4307 - AISI 304/304L - W.Nr.1.4401/1.4404 - AISI 316/316L - W.Nr.1.4162 – 2101 - W.Nr.1.4462 – 2205
download pdf file (mm)SELECT SHAPE BELOW TO VIEW SPECIFICATIONS
|

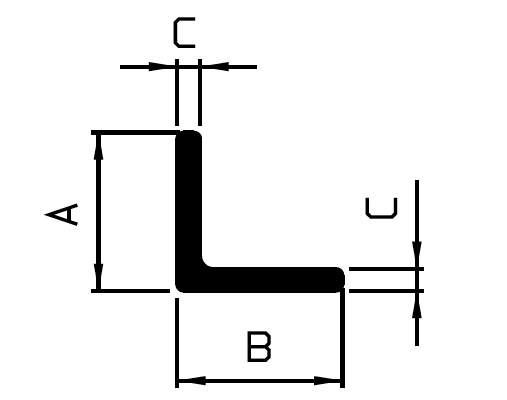

Designation |
Depth A |
Width B |
Thickness C |
Weight lbs/ft |
Area in.2 |
|
|
5 x 5 x 1/4 |
5.000 |
5.000 |
.250 |
8.43 |
2.48 |
e + w |
|
5 x 5 x 5/16 |
5.000 |
5.000 |
.312 |
10.30 |
3.03 |
e + w |
|
5 x 5 x 3/8 |
5.000 |
5.000 |
.375 |
12.30 |
3.62 |
e + w |
|
5 x 5 x 7/16 |
5.000 |
5.000 |
.437 |
14.30 |
4.21 |
e + w |
|
5 x 5 x 1/2 |
5.000 |
5.000 |
.500 |
16.0 |
4.71 |
e + w |
|
6 x 6 x 1/4 |
6.000 |
6.000 |
.250 |
10.20 |
3.00 |
w |
|
6 x 6 x 3/8 |
6.000 |
6.000 |
.375 |
14.90 |
4.38 |
w |
|
6 x 6 x 1/2 |
6.000 |
6.000 | .500 |
19.60 |
5.76 |
w |
|
8 x 8 x 3/8 |
8.000 |
8.000 |
.375 |
20.30 |
5.97 |
w |
|
8 x 8 x 1/2 |
8.000 |
8.000 |
.500 |
26.4 |
7.77 |
w |
| Dimension / Dimensione ( mm ) | Weight / Peso (kg/m) |
| 15 x 15 x 3 | 0.65 |
| 30 x 30 x 3 | 1.35 |
| 40 x 40 x 4 | 2.40 |
| 45 x 45 x 4 | 2.75 |
| 45 x 45 x 6 | 4.00 |
| 45 x 45 x 8 | 5.20 |
| 50 x 50 x 5 | 3.80 |
| 50 x 50 x 7 | 5.10 |
| 55 x 55 x 6 | 5.00 |
| 60 x 60 x 5 | 4.60 |
| 60 x 60 x 6 | 5.50 |
| 60 x 60 x 7 | 6.25 |
| 60 x 60 x 8 | 7.05 |
| 60 x 60 x 10 | 8.70 |
| 65 x 65 x 5 | 5.05 |
| 65 x 65 x 7 | 6.85 |
| 65 x 65 x 9 | 8.70 |
| 70 x 70 x 6 | 6.40 |
| 70 x 70 x 10 | 10.3 |
| 80 x 80 x 6 | 7.35 |
| 80 x 80 x 10 | 11.80 |
| 90 x 90 x 6 | 8.30 |
| Dimension / Dimensione ( mm ) | Weight / Peso (kg/m) |
| 90 x 90 x 7 | 9.65 |
| 90 x 90 x 8 | 10.90 |
| 100 x 100 x 6 | 9.30 |
| 100 x 100 x 7 | 10.80 |
| 100 x 100 x 8 | 12.20 |
| 120 x 120 x 6 | 11.20 |
| 120 x 120 x 8 | 14.80 |
| 120 x 120 x 10 | 18.10 |
| 120 x 120 x 12 | 21.90 |
| 120 x 120 x 13 | 23.60 |
| 130 x 130 x 6 | 12.20 |
| 130 x 130 x 8 | 16.10 |
| 130 x 130 x 10 | 20.00 |
| 130 x 130 x 12 | 23.80 |
| 130 x 130 x 13 | 25.70 |
| 140 x 140 x 6 | 13.00 |
| 140 x 140 x 8 | 17.20 |
| 140 x 140 x 10 | 21.30 |
| 140 x 140 x 12 | 25.40 |
| 150 x 150 x 6 | 13.90 |
| 150 x 150 x 8 | 18.70 |
| 150 x 150 x 10 | 22.90 |
| Dimension / Dimensione ( mm ) | Weight / Peso (kg/m) |
| 160 x 160 x 6 | 14.90 |
| 160 x 160 x 8 | 19.70 |
| 160 x 160 x 10 | 24.50 |
| 160 x 160 x 12 | 28.80 |
| 160 x 160 x 13 | 32.00 |
| 180 x 180 x 6 | 17.00 |
| 180 x 180 x 8 | 22.50 |
| 180 x 180 x 10 | 28.00 |
| 180 x 180 x 12 | 33.40 |
| 180 x 180 x 13 | 36.10 |
| 200 x 200 x 6 | 18.90 |
| 200 x 200 x 8 | 25.10 |
| 200 x 200 x 10 | 31.20 |
| 200 x 200 x 12 | 37.20 |
| 200 x 200 x 13 | 40.20 |
Note: Other sizes upon request can be supplied up to 400 mm
|

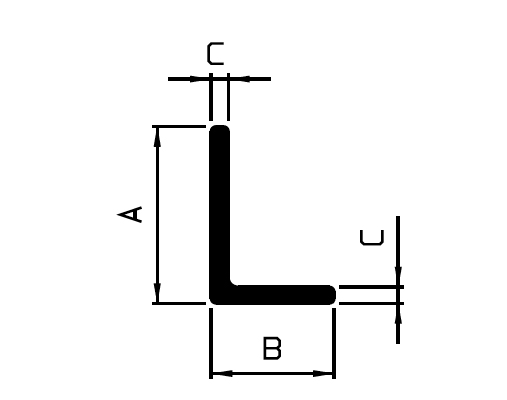

Designation |
Depth in. A |
Width in. B |
Thickness in. C |
Weight lbs/ft |
Area in.2 |
|
|
4 x 3 x 1/4 |
4.000 |
3.000 |
.250 |
5.85 |
1.72 |
e + w |
|
4 x 3 x 5/16 |
4.000 |
3.000 |
.312 |
7.02 |
2.09 |
e + w |
|
4 x 3 x 3/8 |
4.000 |
3.000 |
.375 |
8.50 |
2.50 |
e + w |
|
4 x 3 x 1/2 |
4.000 |
3.000 |
.500 |
11.10 |
3.26 |
e + w |
|
4 x 3-1/2 x 1/4 |
4.000 |
3.500 |
.250 |
6.20 |
1.82 |
e + w |
|
4 x 3-1/2 x 5/16 |
4.000 |
3.500 |
.312 |
7.70 |
2.26 |
e + w |
|
4 x 3-1/2 x 3/8 |
4.000 |
3.500 |
.375 |
9.10 |
2.68 |
e + w |
|
4 x 3-1/2 x 1/2 |
4.000 |
3.500 |
.500 |
11.90 |
3.50 |
e + w |
|
5 x 3 x 1/4 |
5.000 |
3.000 |
.250 |
6.60 |
1.94 |
e + w |
|
5 x 3 x 3/8 |
5.000 |
3.000 |
.375 |
9.80 |
2.88 |
e + w |
|
5 x 3 x 1/2 |
5.000 |
3.000 |
.500 |
13.0 |
3.82 |
e + w |
|
5 x 3-1/2 x 3/8 |
5.000 |
3.500 |
.375 |
10.40 |
3.06 |
e + w |
|
6 x 2 x 1/4 |
6.000 |
2.000 |
.250 |
6.70 |
1.97 |
e + w |
|
6 x 3 x 1/4 |
6.000 |
3.000 |
.250 |
7.45 |
2.19 |
e + w |
|
6 x 3 x 3/8 |
6.000 |
3.000 |
.375 |
11.0 |
3.24 |
e + w |
|
6 x 3-1/2 x 3/8 |
6.000 |
3.500 |
.375 |
11.6 |
3.41 |
e + w |
|
6 x 4 x 1/4 |
6.000 |
4.000 |
.250 |
8.30 |
2.44 |
e + w |
|
6 x 4 x 3/8 |
6.000 |
4.000 |
.375 |
12.3 |
3.62 |
e + w |
|
6 x 4 x 1/2 |
6.000 |
4.000 |
.500 |
16.50 |
4.85 |
e + w |
|
6 x 5 x 1/4 |
6.000 |
5.000 |
.250 |
9.30 |
2.74 |
w |
|
6 x 5 x 3/8 |
6.000 |
5.000 |
.375 |
13.95 |
4.10 |
w |
|
6 x 5 x 1/2 |
6.000 |
5.000 |
.500 |
17.9 |
5.26 |
w |
|
8 x 4 x 3/8 |
8.000 |
4.000 |
.375 |
15.07 |
4.62 |
w |
|
16 x 8 x 1/2 |
16.000 |
8.000 |
.500 |
40.71 |
11.97 |
w |
Note: Other sizes upon request can be supplied up to 16"
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
20 x 10 x 3 |
0.70 |
|
25 x 15 x 3 |
0.90 |
|
30 x 15 x 3 |
01:00 |
|
30 x 20 x 3 |
1.20 |
|
30 x 20 x 4 |
1.50 |
|
40 x 20 x 3 |
1.40 |
|
40 x 20 x 4 |
1.80 |
|
40 x 25 x 4 |
2.00 |
|
40 x 30 x 4 |
2.10 |
|
40 x 30 x 5 |
2.60 |
|
45 x 30 x 5 |
2.80 |
|
50 x 20 x 4 |
2.10 |
|
50 x 25 x 3 |
1.75 |
|
50 x 25 x 4 |
2.30 |
|
50 x 25 x 5 |
2.80 |
|
50 x 30 x 3 |
1.85 |
|
50 x 30 x 4 |
2.45 |
|
50 x 30 x 5 |
3.10 |
|
50 x 40 x 5 |
3.40 |
|
55 x 40 x 5 |
3.60 |
|
55 x 45 x 6 |
4.30 |
|
60 x 30 x 4 |
2.80 |
| Dimension / Dimensione ( mm ) | Weight / Peso (kg/m) |
| 160 x 160 x 6 | 14.90 |
| 160 x 160 x 8 | 19.70 |
| 160 x 160 x 10 | 24.50 |
| 160 x 160 x 12 | 28.80 |
| 160 x 160 x 13 | 32.00 |
| 180 x 180 x 6 | 17.00 |
| 180 x 180 x 8 | 22.50 |
| 180 x 180 x 10 | 28.00 |
| 180 x 180 x 12 | 33.40 |
| 180 x 180 x 13 | 36.10 |
| 200 x 200 x 6 | 18.90 |
| 200 x 200 x 8 | 25.10 |
| 200 x 200 x 10 | 31.20 |
| 200 x 200 x 12 | 37.20 |
| 200 x 200 x 13 | 40.20 |
|

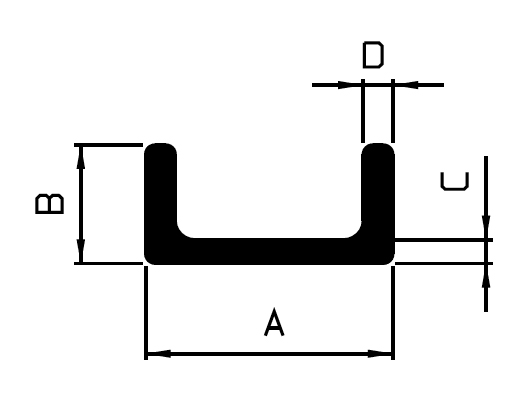

Designation |
Depth in. A |
Flange in. B |
Web / Flange Thickness in. C / D |
Weight lbs/ft |
Area in.2 |
|
|
1-1/2 x 3/4 x 1/8 |
1.500 |
.750 |
.125 |
1.20 |
0.35 |
e |
|
2 x 1 x 1/8 |
2.000 |
1.000 |
.125 |
1.64 |
0.48 |
e |
|
2 x 1 x 3/16 |
2.000 |
1.000 |
.187 |
1.92 |
0.56 |
e |
|
2 x 1 x 1/4 |
2.000 |
1.000 |
.250 |
2.57 |
0.76 |
e |
|
3 x 1-1/2 x 3/16 |
3.000 |
1.500 |
.187 |
3.63 |
1.07 |
e |
|
3 x 1-1/2 x 1/4 |
3.000 |
1.500 |
.250 |
4.90 |
1.44 |
e |
|
4 x 1-3/4 x 1/4 |
4.000 |
1.750 |
.250 |
6.05 |
1.78 |
e + w |
|
4 x 2 x 1/4 |
4.000 |
2.000 |
.250 |
6.50 |
1.91 |
e + w |
|
5 x 2-1/2 x 1/4 |
5.000 |
2.500 |
.250 |
8.33 |
2.45 |
e + w |
|
6 x 2-1/2 x 1/4 |
6.000 |
2.500 |
.250 |
7.16 |
2.11 |
e + w |
|
6 x 2-1/2 x 3/8 |
6.000 |
2.500 |
.375 |
13.30 |
3.91 |
e + w |
|
6 x 2-1/2 x 1/2 |
6.000 |
2.500 |
.500 |
17.50 |
5.15 |
e + w |
|
6 x 3 x 1/4 |
6.000 |
3.000 |
.250 |
10.0 |
2.94 |
w |
|
6 x 3 x 3/8 |
6.000 |
3.000 |
.375 |
14.50 |
4.26 |
e + w |
|
8 x 4 x 1/4 |
8.000 |
4.000 |
.250 |
13.7 |
4.03 |
w |
|
8 x 4 x 3/8 |
8.000 |
4.000 |
.375 |
19.70 |
5.79 |
w |
|
12 x 6 x 3/8 |
12.000 |
6.000 |
.375 |
22.60 |
6.65 |
w |
|
12 x 6 x 1/2 |
12.000 |
6.000 |
.500 |
30.25 |
8.89 |
w |
Note: Other sizes upon request can be supplied up to 16"
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
20 x 10 x 3 x 3.5 |
0.90 |
|
30 x 15 x 3 x 3.5 |
1.50 |
|
30 x 15 x 4 x 4 |
1.70 |
|
30 x 33 x 5 x 7 |
4.30 |
|
40 x 20 x 3 x 3 |
1.80 |
|
40 x 20 x 4 x 4 |
2.30 |
|
40 x 35 x 5 x 7 |
5.10 |
|
50 x 25 x 3 x 3 |
2.30 |
|
50 x 25 x 4 x 4 |
3.00 |
|
50 x 25 x 5 x 6 |
3.90 |
|
50 x 30 x 3 x 3 |
2.50 |
|
50 x 38 x 5 x 7 |
5.70 |
|
60 x 30 x 4 x 4 |
3.50 |
|
60 x 30 x 5 x 5 |
4.40 |
|
60 x 30 x 6 x 6 |
5.20 |
|
60 x 40 x 4 x 4 |
4.20 |
|
65 x 42 x 5.5 x 7.5 |
7.20 |
|
80 x 40 x 5 x 5 |
6.00 |
|
80 x 40 x 6 x 6 |
7.10 |
|
80 x 40 x 8 x 8 |
9.20 |
|
80 x 45 x 6 x 6 |
7.60 |
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
80 x 45 x 6 x 8 |
8.80 |
|
100 x 40 x 6 x 6 |
8.00 |
|
100 x 40 x 8 x 8 |
10.50 |
|
100 x 50 x 4 x 4 |
6.10 |
|
100 x 50 x 5 x 5 |
7.70 |
|
100 x 50 x 6 x 6 |
9.00 |
|
100 x 50 x 6 x 8.5 |
10.80 |
|
100 x 65 x 8 x 8 |
13.70 |
|
120 x 55 x 7 x 7 |
12.10 |
|
120 x 55 x 7 x 9 |
13.60 |
|
120 x 60 x 6 x 6 |
11.00 |
|
130 x 55 x 6 x 9 |
13.70 |
|
130 x 65 x 5 x 5 |
9.90 |
|
130 x 65 x 6 x 6 |
11.80 |
|
140 x 60 x 7 x 10 |
16.30 |
|
140 x 60 x 6 x 6 |
12.90 |
|
140 x 70 x 7 x 7 |
15.20 |
|
140 x 70 x 8 x 8 |
16.80 |
|
150 x 65 x 8 x 8 |
17.00 |
|
150 x 65 x 7.5 x 10.50 |
17.90 |
|
150 x 75 x 6 x 6 |
13.80 |
|
150 x 75 x 8 x 8 |
18.10 |
|

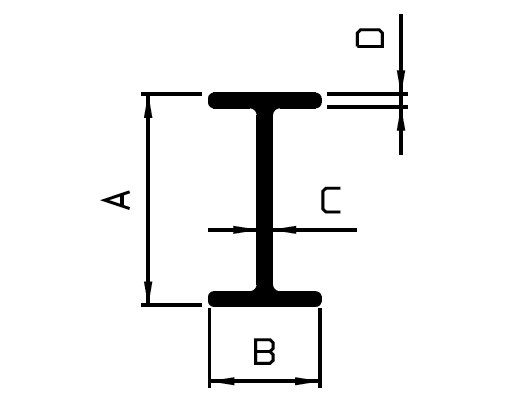

Designation |
Depth in. A |
Flange in. B |
Web Thickness in. C |
Flange Thickness in. D |
Weight lbs/ft |
Area in.2 |
|
|
7 x 2.090 x .210 x .366 |
7.000 |
2.090 |
.210 |
.366 |
9.85 |
2.90 |
w |
|
7 x 2.194 x .314 x .366 |
7.000 |
2.194 |
.314 |
.366 |
12.60 |
3.70 |
w |
|
7 x 2.299 x .419 x .366 |
7.000 |
2.299 |
.419 |
.366 |
14.90 |
4.38 |
w |
|
8 x 2.260 x .220 x .390 |
8.000 |
2.260 |
.220 |
.390 |
11.68 |
3.44 |
w |
|
8 x 2.343 x .303 x .390 |
8.000 |
2.343 |
.303 |
.390 |
13.98 |
4.11 |
w |
|
8 x 2.527 x .487 x .390 |
8.000 |
2.527 |
.487 |
.390 |
19.08 |
5.61 |
w |
|
9 x 2.433 x .233 x .413 |
9.000 |
2.433 |
.233 |
.413 |
13.60 |
4.00 |
w |
|
9 x 2.485 x .285 x .413 |
9.000 |
2.485 |
.285 |
.413 |
15.20 |
4.47 |
w |
|
9 x 2.648 x .448 x .413 |
9.000 |
2.648 |
.448 |
.413 |
20.29 |
5.97 |
w |
|
10 x 2.600 x .240 x .436 |
10.000 |
2.600 |
.240 |
.436 |
15.42 |
4.54 |
w |
|
10 x 2.739 x .379 x .436 |
10.000 |
2.739 |
.379 |
.436 |
20.23 |
5.95 |
w |
|
10 x 2.886 x .526 x .436 |
10.000 |
2.886 |
.526 |
.436 |
25.34 |
7.45 |
w |
|
12 x 2.942 x .282 x .501 |
12.000 |
2.942 |
.282 |
.501 |
21.00 |
6.18 |
w |
|
12 x 3.047 x .387 x .501 |
12.000 |
3.047 |
.387 |
.501 |
25.40 |
7.47 |
w |
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
160 x 65 x 7.5 x 10.5 |
18.80 |
|
160 x 80 x 6 x 6 |
14.80 |
|
160 x 80 x 8 x 8 |
19.40 |
|
175 x 70 x 7.5 x 10.5 |
21.20 |
|
180 x 70 x 8 x 11 |
22.00 |
|
180 x 90 x 6 x 6 |
16.60 |
|
180 x 90 x 8 x 8 |
22.00 |
|
200 x 75 x 8.5 x 11.5 |
25.30 |
|
200 x 100 x 6 x 6 |
18.70 |
|
200 x 100 x 8 x 8 |
24.60 |
|
200 x 100 x 10 x 10 |
30.40 |
|
220 x 80 x 9 x 12.5 |
29.70 |
|
240 x 85 x 9.5 x 13 |
33,50 |
|
260 x 90 x 10 x 14 |
38.20 |
|
280 x 95 x 10 x 15 |
42.30 |
|
300 x 100 x 10 x 16 |
46.50 |
Note: Other sizes upon request can be supplied up to 400 mm
|
Designation |
Depth in. A |
Flange in. B |
Web Thickness in. C |
Weight lbs/ft |
Area in.2 |
|
2 x 1 x 3/16 |
2.000 |
1.000 |
.187 |
01:25 |
.37 |
|
2 x 1 x .300 |
2.000 |
1.000 |
.300 |
03:15 |
.92 |
|
3 x 1-3/8 x 3/16 |
3.000 |
1.375 |
.187 |
04:19 |
01:23 |
|
3 x 1-3/8 x 1/4 |
3.000 |
1.375 |
.250 |
04:38 |
01:28 |
|
3 x 1.410 x.170 |
3.000 |
1.410 |
.170 |
04:10 |
01:20 |
|
3 x 1.498 x .258 |
3.000 |
1.498 |
.258 |
05:00 |
01:47 |
|
3 x 1-1/2 x 3/16 |
3.000 |
1.500 |
.187 |
04:30 |
01:26 |
|
3 x 1-1/2 x 1/4 |
3.000 |
1.500 |
.250 |
4.75 |
01:39 |
|
3 x 1.596 x .356 |
3.000 |
1.596 |
.356 |
06:00 |
1.76 |
|
3 x 2 x 1/4 |
3.000 |
2.000 |
.250 |
07:10 |
02:08 |
|
4 x 1.584 x .184 |
4.000 |
1.580 |
.180 |
5.40 |
01:59 |
|
4 x 1.647 x .247 |
4.000 |
1.647 |
.247 |
6.25 |
1.84 |
|
4 x 1.720 x .321 |
4.000 |
1.721 |
.321 |
07:25 |
02:13 |
|
4 x 1-3/4 x 1/4 |
4.000 |
1.750 |
.250 |
6.70 |
1.96 |
|
4 x 1-3/4 x .290 |
4.000 |
1.750 |
.290 |
9.95 |
2.91 |
|
5 x 1.750 x .190 |
5.000 |
1.750 |
.190 |
6.70 |
1.97 |
|
5 x 1-7/8 x 3/8 |
5.000 |
1.875 |
.375 |
10:40 |
03:04 |
|
5 x 1.885 x .325 |
5.000 |
1.885 |
.325 |
9.0 |
2.64 |
|
6 x 1.92 x .200 |
6.000 |
1.920 |
.200 |
08:20 |
02:40 |
|
6 x 2.034 x .314 |
6.000 |
2.034 |
.314 |
10:05 |
03:09 |
|
6 x 2.157 x .437 |
6.000 |
2.157 |
.437 |
13:00 |
3.83 |

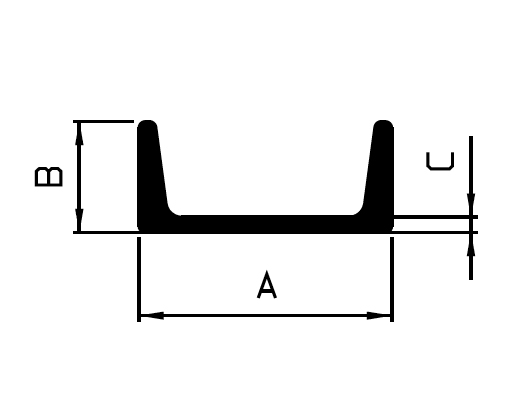

CHANNELS "UNP"
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
20 x 10 x 3 x 3.5 |
0.85 |
|
30 x 15 x 3 x 3.5 |
1.40 |
|
30 x 15 x 4 x 4.5 |
1.75 |
|
40 x 20 x 3 x 3.5 |
1.80 |
|
40 x 20 x 4 x 4.5 |
2.30 |
|
40 x 35 x 5 x 7 |
4.80 |
|
50 x 25 x 3 x 3.5 |
2.30 |
|
50 x 25 x 5 x 6 |
3.90 |
|
50 x 38 x 5 x 7 |
5.60 |
|
60 x 30 x 5 x 5 |
4.40 |
|
60 x 30 x 6 x 6 |
5.10 |
|
65 x 42 x 5.5 x 7.5 |
7.10 |
|
80 x 45 x 6 x 8 |
8.65 |
|
100 x 50 x 6 x 8.5 |
10.60 |
|
120 x 55 x 7 x 9 |
13.40 |
|
140 x 60 x 7 x10 |
16.20 |
|
Designation |
Depth in. A |
Flange in. B |
Web Thickness in. C |
Flange Thickness in. D |
Weight lbs/ft |
Area in.2 |
|
|
1-1/2 x 1 x14 x 1/4 |
1.500 |
1.000 |
.250 |
.250 |
04:00 |
01:18 |
e |
|
2 x 1-1/4 x 1/4 x 1/4 |
2.000 |
1.375 |
.250 |
.250 |
5.30 |
1.56 |
e |
|
3 x 2-3/8 x .280 |
3.000 |
2.375 |
.250 |
.250 |
6.60 |
1.94 |
e |
|
3 x 3 x .200 x .250 |
3.000 |
3.000 |
.200 |
.250 |
7.23 |
2.13 |
e |
|
4 x 2-3/4 x 1/4 x 1/4 |
4.000 |
2.750 |
.250 |
.250 |
8.44 |
2.48 |
e + w |
|
4 x 4 x 1/4 x 5/16 |
4.000 |
4.000 |
.250 |
.313 |
11.90 |
3.50 |
e + w |
|
6 x 4 x 1/4 |
6.000 |
4.000 |
.250 |
.250 |
13.60 |
4.00 |
w |
|
6 x 4 x .472 x .472 |
6.000 |
4.000 |
.472 |
.472 |
21.0 |
6.18 |
w |
|
6 x 6 x 1/4 x 3/8 |
6.000 |
6.000 |
.250 |
.375 |
20.22 |
5.95 |
w |
|

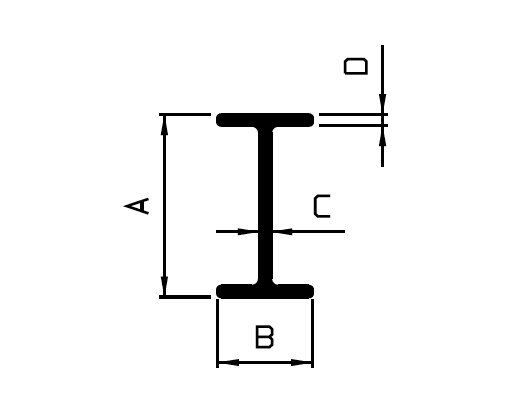

Designation "Nominal depth" |
x |
Weight lbs/ft |
Depth in. A |
Flange in. B |
Web Thickness in. C |
Flange Thickness in. D |
Area in.2 |
|
|
S3 |
x |
7.50 |
3.000 |
2.509 |
.349 |
.260 |
2.21 |
e + w |
|
S4 |
x |
7.70 |
4.000 |
2.663 |
.193 |
.293 |
2.26 |
e + w |
|
9.50 |
4.000 |
2.796 |
.326 |
.293 |
2.79 |
e + w |
||
|
S5 |
x |
10.0 |
5.000 |
3.004 |
.214 |
.326 |
2.94 |
w |
|
S6 |
x |
12.50 |
6.000 |
3.332 |
.232 |
.359 |
3.67 |
w |
|
17.30 |
6.000 |
3.565 |
.465 |
.359 |
5.07 |
w |
||
|
S8 |
x |
18.40 |
8.000 |
4.001 |
.271 |
.425 |
5.41 |
w |
|
23.0 |
8.000 |
4.171 |
.441 |
.425 |
6.77 |
w |
||
|
S10 |
x |
25.4 |
10.000 |
4.661 |
.311 |
.491 |
7.46 |
w |
HEA BEAMS / TRAVI HEA
|
Dimension / Dimensione ( mm ) |
Weight / Peso (kg/m) |
|
96 x 100 x 5 x 8 |
17.00 |
|
114 x 120 x 5 x 8 |
20.20 |
|
133 x 140 x 5.5 x 8.5 |
25.10 |
|
152 x 160 x 6 x 9 |
31.00 |
|
171 x 180 x 6 x 9.5 |
36.20 |
|
190 x 200 x 6.5 x 10 |
42.30 |
|
210 x 220 x 7 x 10 |
48.60 |
|
230 x 240 x 7.5 x 12 |
58.50 |
|
250 x 260 x 7.5 x 12.5 |
63.60 |
|
270 x 280 x 8 x 13 |
72.90 |
|
290 x 300 x 8.5 x 13.5 |
80.40 |
HEB BEAMS / TRAVI HEB
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
100 x 100 x 6 x 10 |
20.80 |
|
120 x 120 x 6.5 x 11 |
27.20 |
|
140 x 140 x 7 x 12 |
34.40 |
|
160 x 160 x 8 x 13 |
43.40 |
|
180 x 180 x 8.5 x 14 |
52.20 |
|
200 x 200 x 9 x 15 |
62.50 |
|
220 x 220 x 9.5 x 16 |
71.50 |
|
240 x 240 x 10 x 17 |
83.20 |
|
260 x 260 x 10 x 17.5 |
93.00 |
|
280 x 280 x 10.5 x 18 |
103.00 |
|
300 x 300 x 11 x 19 |
117.00 |
|
Designation |
Depth in. A |
Flange in. B |
Web Thickness in. C |
Weight lbs/ft |
Area in.2 |
|
3 x 2.331 x .169 |
3.000 |
2.331 |
.169 |
04:00 |
01:18 |
|
3 x 2-3/8 x 1/4 |
3.000 |
2.375 |
.250 |
6.60 |
1.94 |
|
3 x 2-3/8 x .280 |
3.000 |
2.375 |
.280 |
6.52 |
1.92 |
|
4 x 2.661 x .193 |
4.000 |
2.661 |
.193 |
7.00 |
2.06 |
|
4 x 2-3/4 x 1/4 |
4.000 |
2.750 |
.250 |
08:44 |
2,48 |
|
5 x 3 x .326 |
5.000 |
3.000 |
.326 |
11.40 |
3.35 |
|
6 x 3.330 x .233 |
6.000 |
3.330 |
.233 |
11.20 |
3.29 |
|
6 x 3.332 x .359 |
6.000 |
3.332 |
.359 |
14.90 |
4.38 |
|
6 x 3.559 x .465 |
6.000 |
3.559 |
.465 |
17.70 |
5.21 |
|

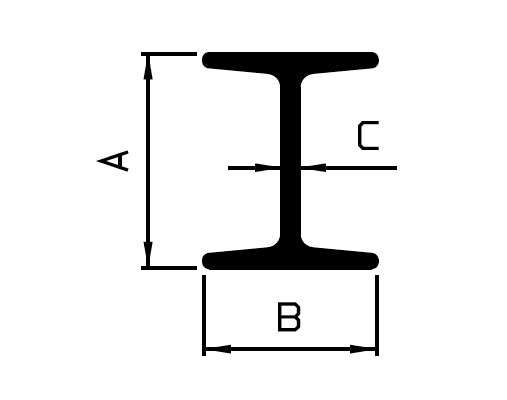

Designation "Nominal depth" |
x |
Weight lbs/ft |
Depth in. A |
Flange in. B |
Web Thickness in. C |
Flange Thickness in. D |
Area in.2 |
|
|
W4 |
x |
13.0 |
4.160 |
4.060 |
.280 |
.345 |
3.83 |
w |
|
W5 |
x |
16.0 |
5.010 |
5.000 |
.240 |
.360 |
4.68 |
w |
|
18.90 |
5.000 |
5.003 |
.316 |
.416 |
5.55 |
w |
||
|
19.0 |
5.150 |
5.030 |
.270 |
.430 |
5.56 |
w |
||
|
W6 |
x |
9.0 |
5.900 |
3.940 |
.170 |
.215 |
2.68 |
w |
|
12.0 |
6.030 |
4.000 |
.230 |
.280 |
3.55 |
w |
||
|
15.0 |
5.990 |
5.990 |
.230 |
.260 |
4.43 |
w |
||
|
16.0 |
6.280 |
4.030 |
.260 |
.405 |
4.74 |
w |
||
|
20.0 |
6.200 |
6.020 |
.260 |
.365 |
5.87 |
e + w |
||
|
25.0 |
5.000 |
3.004 |
.214 |
.326 |
7.34 |
w |
||
|
W8 |
x |
10.0 |
7.89 |
3.940 |
.170 |
.205 |
2.96 |
w |
|
13.0 |
7.99 |
4.000 |
.230 |
.255 |
3.84 |
w |
||
|
15.0 |
8.110 |
4.015 |
.245 |
.'315 |
4.44 |
w |
||
|
18.0 |
8.14 |
5.250 |
.230 |
.330 |
5.26 |
w |
||
|
21.0 |
8.28 |
5.270 |
.250 |
.400 |
6.16 |
w |
||
|
24.0 |
7.930 |
6.495 |
.245 |
.400 |
7.08 |
w |
||
|
31.0 |
8.000 |
7.995 |
.285 |
.435 |
9.13 |
w |
||
|
35.0 |
8.120 |
8.020 |
.310 |
.495 |
10.30 |
w |
||
|
40.0 |
8.250 |
8.070 |
.360 |
.560 |
11.70 |
w |
||
|
48.0 |
8.500 |
8.110 |
.400 |
.685 |
14.10 |
w |
||
|
58.0 |
8.750 |
8.220 |
.510 |
.810 |
17.10 |
w |
||
|
67 |
9.000 |
8.280 |
.570 |
.935 |
19.70 |
w |
||
|
W10 |
x |
12.0 |
9.870 |
3.960 |
.190 |
.210 |
3.54 |
w |
|
15.0 |
9.990 |
4.000 |
.230 |
.270 |
4.41 |
w |
||
|
17.0 |
10.110 |
4.010 |
.240 |
.330 |
4.99 |
w |
||
|
19.0 |
10.240 |
4.020 |
.250 |
.395 |
5.62 |
w |
||
|
22.0 |
10.170 |
5.750 |
.240 |
.360 |
6.49 |
w |
||
|
26.0 |
10.330 |
5.770 |
.300 |
.440 |
7.61 |
w |
||
|
30.0 |
10.470 |
5.810 |
.300 |
.510 |
8.84 |
w |
||
|
33.0 |
9.730 |
7.960 |
.290 |
.435 |
9.71 |
w |
||
|

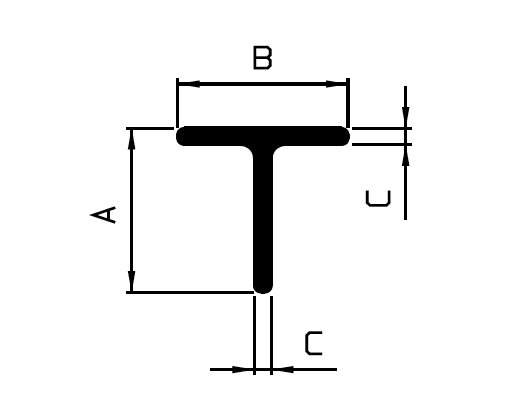

Designation |
Depth in. A |
Flange in. B |
Web / Flange Thickness in. C |
Weight lbs/ft |
Area in.2 |
|
|
1 x 1 x 1/8 |
1.000 |
1.000 |
.125 |
0.85 |
0.25 |
r |
|
1 x 1 x 1/4 |
1.000 |
1.000 |
.250 |
1.60 |
0.47 |
r |
|
1-1/4 x 1-1/4 x 1/8 |
1.250 |
1.250 |
.125 |
1.09 |
0.32 |
r |
|
1-1/2 x 1-1/2 x 3/16 |
1.500 |
1.500 |
.187 |
1.90 |
0.56 |
e + w |
|
1-1/2 x 1-1/2 x 1/4 |
1.500 |
1.500 |
.250 |
2.50 |
0.74 |
e + w |
|
1-3/4 x 1-3/4 x 3/16 |
1.750 |
1.750 |
.187 |
2.16 |
0.64 |
e + w |
|
2 x 2 x 3/16 |
2.000 |
2.000 |
.187 |
2.44 |
0.72 |
e + w |
|
2 x 2 x 1/4 |
2.000 |
2.000 |
.250 |
3.30 |
0.97 |
e + w |
|
2-1/2 x 2-1/2 x 1/4 |
2.500 |
2.500 |
.250 |
4.20 |
1.24 |
e + w |
|
3 x 3 x 3/16 |
3.000 |
3.000 |
.187 |
4.00 |
1.18 |
e + w |
|
3 x 3 x 1/4 |
3.000 |
3.000 |
.250 |
5.0 |
1.47 |
e + w |
|
3 x 3 x 3/8 |
3.000 |
3.000 |
.375 |
7.30 |
2.15 |
e + w |
|
4 x 4 x 3/16 |
4.000 |
4.000 |
.187 |
5.30 |
1.60 |
e + w |
|
4 x 4 x 1/4 |
4.000 |
4.000 |
.250 |
6.70 |
1.97 |
e + w |
|
4 x 4 x 3/8 |
4.000 |
4.000 |
.375 |
9.90 |
2.91 |
e + w |
|
5 x 5 x 3/16 |
5.000 |
5.000 |
.187 |
6.70 |
1.97 |
w |
|
5 x 5 x 1/4 |
5.000 |
5.000 |
.250 |
8.40 |
2,47 |
w |
|
5 x 5 x 3/8 |
5.000 |
5.000 |
.375 |
12.40 |
3.65 |
w |
|
5 x 5 x 1/2 |
5.000 |
5.000 |
.500 |
16.30 |
4.79 |
w |
|
6 x 6 x 1/4 |
6.000 |
6.000 |
.250 |
10.20 |
3.00 |
w |
|
6 x 6 x 3/8 |
6.000 |
6.000 |
.375 |
15.00 |
4.41 |
w |
|
6 x 6 x 1/2 |
6.000 |
6.000 |
.500 |
19.70 |
5.79 |
w |
|
7 x 7 x 1/4 |
7.000 |
7.000 |
.250 |
12.0 |
3.53 |
w |
|
7 x 7 x 3/8 |
7.000 |
7.000 |
.375 |
17.5 |
5.15 |
w |
|
7 x 7 x 1/2 |
7.000 |
7.000 |
.500 |
23.10 |
6.79 |
w |
EQUAL LEG TEE / TEE A LATI UGUALI
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
20 x 20 x 3 |
0.90 |
|
20 x 20 x 4 |
01:15 |
|
25 x 25 x 3 |
01:12 |
|
25 x 25 x 4 |
01:50 |
|
30 x 30 x 3 |
01:35 |
|
30 x 30 x 4 |
1.78 |
|
35 x 35 x 3 |
1.60 |
|
35 x 35 x 4 |
02:10 |
|
40 x 40 x 4 |
02:40 |
|
40 x 40 x 5 |
03:00 |
|
40 x 40 x 7 |
04:10 |
|
50 x 50 x 5 |
3.80 |
|
50 x 50 x 6 |
04:40 |
|
60 x 60 x 6 |
05:50 |
|
70 x 70 x 7 |
07:50 |
|
80 x 80 x 8 |
07:30 |
|
90 x 90 x 9 |
9.70 |
|
100 x 100 x 8 |
12:30 |
|
100 x 100 x 10 |
15.30 |
|
120 x120 x 10 |
18.40 |
|
120 x 120 x 13 |
25.10 |
|
140 x 140 x 10 |
21.60 |
|
140 x 140 x 13 |
27.80 |
|
140 x 140 x 15 |
31.80 |
UNEQUAL LEG TEE / TEE
|
Dimension / Dimensione (mm) |
Weight / Peso (kg/m) |
|
20 x 40 x 4 x 4 |
1.80 |
|
25 x 50 x 5 x 5 |
2.80 |
|
30 x 60 x 5.5 x 5.5 |
3.65 |
|
35 x 70 x 6 x 6 |
4.65 |
|
40 x 60 x 4 x 4 |
3.20 |
|
40 x 80 x 7 x 7 |
6.20 |
|
50 x 100 x 8.5 x 8.5 |
9.00 |
|
60 x 120 x 10 x 10 |
12.80 |
Available in a variety of sizes and styles, structural shapes can be used to build everything from furniture to complex buildings.
Kamet Special Profiles offers a huge inventory of steel structural shapes.
We provide cut-to-length services and a wide range of standard sizes and lengths, to accommodate your design.
